302F, 3-pc ball valves, ISO direct mount

Thread/ SW/ BW, V-notch ball, PTFE cavity filler

Design Features

  • Body & end caps quality investment casting
  • ANSI B16.34 construction
  • Swing-out design for easy replacement
  • ISO 5211 direct mounting pad
  • Self adjusted stem design for high cycle operation
  • Blow-out proof stem design
  • Thread/ SW/ BW/ ISO 1127/ DIN 11850
  • With locking device

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • V-notch ball for 30°/ 60°/ 90°/ slot
  • Body cavity fillers fill the voids between the ball and body
  • Flanged end to ANSI150/ PN16/ JIS10K
  • ISO 15848 and TA-Luft Fugitive emission certified
  • Various seat materials for different conditions
  • Fugitive emission bonnet
  • Manual handle with limit switch box
  • Duplex, Super Duplex

Related Reference

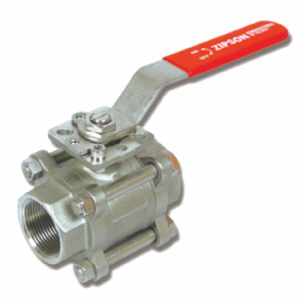

302F, 3-pc ball valve, direct mount

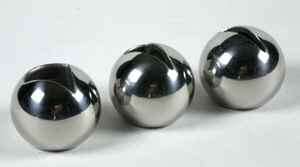

  • V-Notch Ball

    V-Notch Ball for Flow Control

    • 30°/ 60°/ 90°/ Slot notch ball for option; 15° or 45° are availble when require
    • Easy to replace and assemble
    v-notch ball
  • Cavity Filler

    Cavity Filler (Cavity Filled Seats)

    • Cavity filler to keep from media deposit in the valve cavity
    • Keep from media solidification by low temperature or dry to cause the problem of valve operation
    cavity filled valve
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Flanged Ends

    Flanged end 302F type

    • with flanged ends for replacement
    • ANSI 150/ PN16 / JIS 10K standard
    302F, flanged end, #150, PN16, JIS10K
  • Manual Valve+LSB

    Manual ball valves with limit switch box

    • Very nice and heavy duty design
    • SS 304 bracket
    manual valve with limit switch box
