Top entry ball valves

Item 110T

top-entry ball valve, ISO direct mount, red. bore, thread/ SW/ BW end

• size: 1/4” to 4”
• mat: CF8M/ WCB
• rating: 1000 WOG
• option: automation
  (learn more)

Item 110F

top-entry ball valve, ISO direct mount, red. bore, flanged end

• size: 1/2” to 4”
• mat: CF8M/ WCB
• rating: #150
• option: automation
  (learn more)

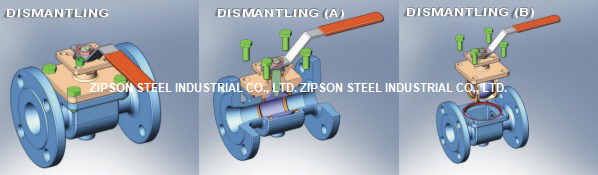

Save the time of shut-down and easy replacement

Zipson's 110T/ 110F top-entry ball valves are designed for most of the industires required in-line repairing, cleaning, maintaining in very short time to save a lot of cost & time during shut down.110T/ 110F are very convenient to maintain or replace the soft kits without any speical tools. For the valve below 4", the time of replacement is less than 3 minutes if a new bonnet is prepared on-site.

Larger size and V-Notch ball are available

The size of 110F, ANSI150 expanded up to 6" size and V-notch ball (30°/ 60°/ 90°) for flow control purpose is available for option now.
