Item 501S

3-way ball valve, compact type, ISO direct mount, T/L-port, full/ red. bore, threaded end

• size: 1/4” to 2”
• mat: CF8M
• rating: 1000 WOG
• option: automation, no mix design
  (learm more)

3-way ball valves

Item 501R

3-way ball valve, manual type, T/L-port,  threaded end

• size: 1/4” to 2”
• mat: CF8M
• rating: 1000 WOG
• option: N/A
  (learn more)

Item 610A

3-way sanitary ball valve, ISO direct mount, T/L-port, T-Clamp ends

• size: 1/2” to 2”
• mat: CF8M
• rating: 1000 WOG
• option: automation
  (learn more)

3-way ball valves can be used in smart ways to save space and pipe cost by diverting the T-port or L-port balls to a 3D flow area.  3-way ball valves also expand the usage of piping works.

Design Features

• Wide working condition range by exchanging the seat (PTFE/ RPTFE/ TFM/ TFM4215/ UHMWPE/ PEEK)
• 4 seats design
• Both full bore and standard (reduced) port are available
• Self adjusting stem packing
• 180 deg. operation handle for option (501S/ 610A)
• Low torque, low working pressure design for option
• Eco-design: Old valves are suitable with new version soft kits
• Real-locking function by handle stop plate

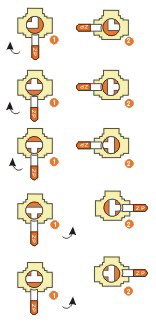

L-3 90

T-3 90

T-4 90

T-5 90

T-6 90
