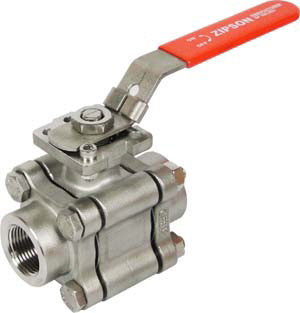

306D, 3-pc ball valve, 3600 psi

high performance, floating ball design

Design Features

  • Body & end caps quality investment casting
  • ANSI B16.34 construction
  • 3600 PSI/ Class 1500 rating
  • Self adjusted stem design for high cycle operation
  • Blow-out proof stem design
  • Thread/ SW/ BW

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • V-notch ball for 30°/ 60°/ 90°/ slot
  • API 607 fire safe certified
  • ISO 15848 and TA-Luft Fugitive emission certified
  • Fugitive emission bonnet
  • Manual handle with limit switch box

Related Reference

306D, high performance ball valve
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Gear Operator
    305D ball valve with gear operator

    Valves with Gear Operator

    • Valve with Gear Operator will help to turn the higher torque valve
    • Gear box is heavy duty design
  • V-Notch

    V-Notch Ball for Flow Control

    • 30°/ 60°/ 90°/ Slot notch ball for option; 15° or 45° are availble when require
    • Easy to replace and assemble
    v-notch ball
