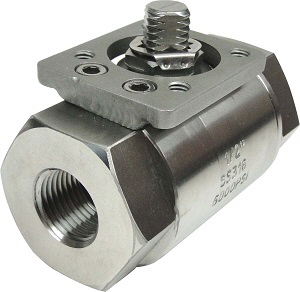

216T, 2-pc ball valve, 7500/ 6000 psi

high pressuer ball valve, 2-pc design

Design Features

  • Body & end caps are turned by bar stock
  • ANSI B16.34 construction
  • 7500/ 6000 psi high pressure design
  • Self adjusted stem design
  • Blow-out proof stem design
  • Threaded end

Options

  • ISO 5211 mounting pad with locking function
  • Alloy materials are available when required
  • Orbital welding on body and end
  • SS seat protector for seat erosion
  • Fire safe design
216T-1

Related Reference

216T-2
  • Gear Operator

    Valves with Gear Operator

    • Valve with Gear Operator will help to turn the higher torque valve
    • Gear box is heavy duty design
    305D ball valve with gear operator
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
