302S, Sanitary ball valves, high purity

HC-22, Tri-Clamp/ tube weld/ Ex-tube/ SMS 3008

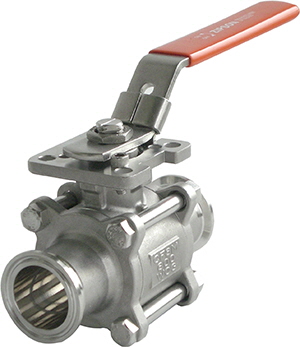

302S, 3-pc sanitary ball valve, T-Clamp, tube, SMS 3008 ends

Design Features

  • Body & end caps quality investment casting
  • Regulation (EC) No. 1935/2004; (EU) 10/2011
  • Tri-Clamp/ Tube/ Ex-Tube/ SMS 3008/ DIN 32676 T-Clamp connection
  • FDA certified O-ring and sealing kits
  • High purity with 0.51~0.64 um (20-25 u-in or 180G/ #180) flow port polish
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Blow-out proof stem design
  • with locking function

Options

  • 3-A Sanitary Standard Certified (Number: 68-00)
  • Automation application (actuator/ limit switch box/ solenoid valve)
  • V-notch ball, 30°/ 60°/ 90°
  • Self-cleaning design
  • Hastelloy C-22 (CX2MW) material is available for pharmaceutical industries
  • Thermal insulation stem extension
  • Various seat materials for different conditions
  • Manual handle with limit switch box
  • Low Ferrite casting, less than 1% Ferrite content

Related Reference

  • V-Notch Ball

    V-Notch Ball for Flow Control

    • 30°/ 60°/ 90°/ Slot notch ball for option; 15° or 45° are availble when require
    • Easy to replace and assemble
    v-notch ball
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Self-Cleaning

    Self Cleaning Design

    • Media self cleans the valve cavity all the time when the liquid running through the valves
    • Remove the media in the valve cavity by the miedia itself
    • Easy to flush and clean the interior valve by water or steam
    3-way self cleaning, self-flusing ball valve
  • Spring Return Handle

    Valve with Dead-Man Handle

    • The valves with Spring Return Handle will return when user release the handle.
    • Users will never forget to close the valve as the valves are with Dead-Man Handle
    • For size 1/4” to 4” (100 Nm)
    • All with locking function
    • Torque adjusted design
    • Zipson Patented!
    ball valves with spring handle (dead-man handle)1
  • Handle+Limit Switch Box

    Manual ball valves with limit switch box

    • Very nice and heavy duty design
    • SS 304 bracket
    manual valve with limit switch box
