505T, Multi-way ball valve

3/4-way, in-line repairable, easy to repair and assemble

Design Features

  • In-line repairable design, easy to repair and 505T, inline repairable design, multi-way valvesassemble when the valves are on line
  • Body & end caps quality investment casting
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Blow-out proof stem design
  • Available in 3/4/5-way construction
  • Ball type can be L/ T/ X/ I-port
  • with real locking function

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • Cavity filler to keep from deposit or media solidification
  • Self-cleaning design
  • Fugitive emission bonnet
  • 180° stop plate for 180° operation
  • Various seat materials for different conditions

Related Reference

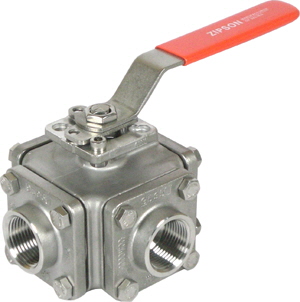

501T, multi-port ball valve, thread, SW, BW ends
  • Automation
    actuated ball valves

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
  • Cavity Filler
    PTFE cavity filler for multi-way ball valves

    Cavity Filler (Cavity Filled Seats)

    • Cavity filler to keep from media deposit in the valve cavity
    • Keep from media solidification by low temperature or dry to cause the problem of valve operation
  • Real Locking

    Real Locking

    • The valves with Real Locking Design are locked well even the valves without handle
    • Real Locking ball valves are for 501S/ 501T/ 501F/ 610A/ 620A/ 513T/ 513F
    real locking ball valve-web
  • Self Cleaning

    Self Cleaning Design

    • Media self cleans the valve cavity all the time when the liquid running through the valves
    • Remove the media in the valve cavity by the miedia itself
    • Easy to flush and clean the interior valve by water or steam
    3-way self cleaning, self-flusing ball valve
