Item 305M

3-pc ball valve, 2160 psi (Class 900), metal seat, thread/ SW/ BW/ flange

• size: 1/4” to 4”
• mat: CF8M/ WCB/ Alloy
• rating: 2160 WOG
• option: automation
  (learn more)

Metal seated ball valves

Item 306M

3-pc ball valve, 3600 psi (Class 900), metal seat, thread/ SW/ BW/ flange

• size: 1/4” to 3”
• mat: CF8M/ WCB/ Alloy
• rating: 3600 WOG
• option: automation
  (learn more)

Item 207M

2-pc flanged ball valve, metal seat, flanged end

• size: 1/2” to 12”
• mat: CF8M/ WCB/ Alloy
• rating: #150/ #300
• option: automation
  (learn more)

Item 107M

1-pc flanged ball valve, metal seat, flanged end

• size: 1/2” to 8”
• mat: CF8M/ WCB
• rating: #150
• option: automation
  (learn more)

Item 501M

3-way ball valve, metal seat, thread/ SW/ BW/ flange

• size: 1/2” to 4”
• mat: CF8M/ WCB
• rating: 1000 WOG
• option: automation
  (learn more)

Various Industries

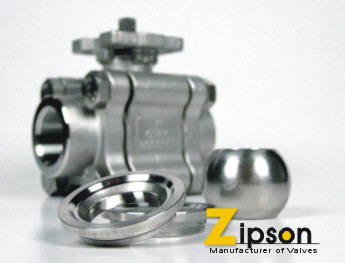

ZIPSON'S high performance metal seated ball valve with ISO direct mounting pad is designed for use in high temperature, abrasive, and high pressure media in power generation, petrochemical industries, mining industries, and pulp & paper ones.

ANSIB16.34 Construction to compare the economic valve in the market, Zipson make valve structure & wall thickness totally follow ASME B16.34 standard on ASME 150/ 300/ 600/ 900/ 1500 construction. The exact structure make safe in the high performance application.

Co/ Ni Base Ball Design

The key components of the metal seated valve is ball and seat, we use different materials to fit customers’ different working condition. The basic process is Co ball or basic ball material with HVOF process Ni/ Co/ Tungsten Carbide/ Chrome Carbide coating.  Special Alloy metal seated valve are available in Zipson, especially for mining industries.

Class V Leakage & Bi-Directional Design

The Zipson patent unique split seat design is perfect to seal the leakage from & over the seat area to make Zipson's metal seated valves meet at least Class V leakage class.

305D metal seated type is bi-directional design to simplify the plumbing works. The Inconel 750 spring provide great support behind the seat to seal & reduce the valve torque.
