110F, Top-Entry flanged ball valves

smart design, easy to repair, save time of shut-down

Design Features

  • Body & end caps quality investment casting
  • Top entry construction, easy to repair and replace
  • No need special tools to replace the seats
  • with ISO 5211 direct mounting pad
  • Blow-out proof stem design
  • With real locking function

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • V-notch ball for 30°/ 60°/ 90°/ slot 110F, DN150
  • Various seat materials for different conditions
  • Fugitive emission bonnet
  • Manual handle with limit switch box
  • Special alloy materials are available as required

Related Reference

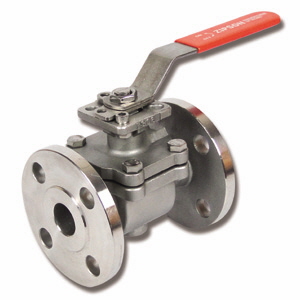

110F, flanged top entry ball valve
  • V-Notch

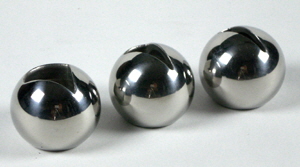

    v-notch ball

    V-Notch Ball for Flow Control

    • 30°/ 60°/ 90°/ Slot notch ball for option; 15° or 45° are availble when require
    • Easy to replace and assemble
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Handle with LSB

    Manual ball valves with limit switch box

    • Very nice and heavy duty design
    • SS 304 bracket
    manual valve with limit switch box
  • Spring Return Handle

    Valve with Dead-Man Handle

    • The valves with Spring Return Handle will return when user release the handle.
    • Users will never forget to close the valve as the valves are with Dead-Man Handle
    • For size 1/4” to 4” (100 Nm)
    • All with locking function
    • Torque adjusted design
    • Zipson Patented!
    ball valves with spring handle (dead-man handle)
