610A, 3-way sanitary ball valves

Tri-Clamp ends, T/L-ball port, compact type design

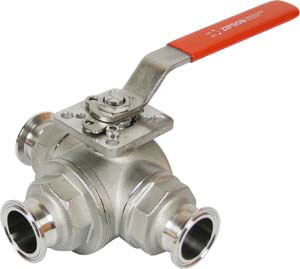

610A, 3-way sanitary ball valve, ISO direct mount, compact type

Design Features

  • Body & end caps quality investment casting
  • Regulation (EC) No. 1935/ 2004
  • T-Clamp ends connection
  • FDA certified O-ring and sealing kits
  • High purity with 0.51~0.64 um (20-25 u-in or 180G/ #180) flow port polish
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Blow-out proof stem design
  • Available in L-port or T-port
  • Available in full bore or reduced bore (std. bore)
  • with real locking function

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • Self-cleaning design
  • Thermal insulation stem extension
  • 180° stop plate for 180° operation
  • Various seat materials for different conditions
  • Manual handle with limit switch box

Related Reference

  • Self Cleaning

    Self Cleaning Design

    • Media self cleans the valve cavity all the time when the liquid running through the valves
    • Remove the media in the valve cavity by the miedia itself
    • Easy to flush and clean the interior valve by water or steam
    3-way self cleaning, self-flusing ball valve
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
