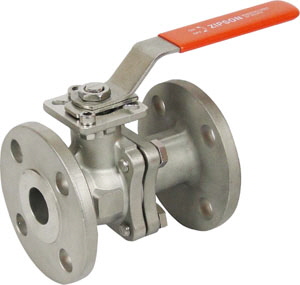

207S, 2-pc flanged ball valves, ISO direct mount

ANSI150/ PN16/ JIS10K

Design Features

  • Body & end caps quality investment & sand casting
  • ANSI B16.34 construction
  • With ISO 5211 direct mounting pad
  • Self adjusted stem design for high cycle operation
  • Blow-out proof stem design
  • Working pressure: Class 150/ PN16/ 10K
  • Size range: 1/2” to 4” (DN15 to DN100)

Options

  • Fire safe: API 607-5th Edition Certified
  • Automation accessories
  • V-notch ball for 30°/ 60°/ 90°/ slot
  • ISO 15848 and TA-Luft Fugitive emission certified
  • PTFE Cavity filler
  • Various seat materials for different conditions
  • Fugitive emission bonnet
  • Spring return (dead-man) handle
  • Table D, Table E drilling

Related Reference

207S
  • V-Notch Ball

    V-Notch Ball for Flow Control

    • 30°/ 60°/ 90°/ Slot notch ball for option; 15° or 45° are availble when require
    • Easy to replace and assemble
    v-notch ball
  • Cavity Filler
    cavity filled valve

    Cavity Filler (Cavity Filled Seats)

    • Cavity filler to keep from media deposit in the valve cavity
    • Keep from media solidification by low temperature or dry to cause the problem of valve operation
  • Automation

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Manual valve+LSB

    Manual ball valves with limit switch box

    • Very nice and heavy duty design
    • SS 304 bracket
    manual valve with limit switch box
