610A, 3-way sanitary ball valve

Compact Type, internal polish, ISO diret mount

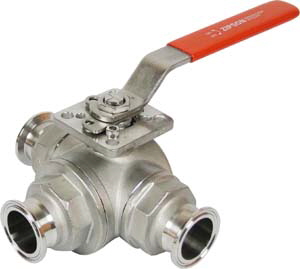

610A, 3-way sanitary ball valve, ISO direct mount, compact type

Design Features

  • Body & end caps quality investment casting
  • T-Clamp ends connection
  • FDA certified O-ring and sealing kits
  • High purity with 0.51~0.64 um (20-25 u-in or 180G/ #180) flow port polish
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Blow-out proof stem design
  • Available in L-port or T-port
  • Available in full bore or reduced bore (std. bore)
  • with real locking function

Options

  • Automation application (actuator/ limit switch box/ solenoid valve)
  • Self-cleaning design
  • Thermal insulation stem extension
  • 180° stop plate for 180° operation
  • Various seat materials for different conditions
  • Manual handle with limit switch box

Related Reference

  • Self Cleaning

    Self Cleaning Design

    • Media self cleans the valve cavity all the time when the liquid running through the valves
    • Remove the media in the valve cavity by the miedia itself
    • Easy to flush and clean the interior valve by water or steam
    3-way self cleaning, self-flusing ball valve
  • Actuated Valves

    Valves with Actuator

    • with both pneumatic and electric actuator
    • with gear operator for actuator
    • Limit switch box or solenoid valves are available
    • for high working temperature condition, Zipson will help to build suitable bracket and coupler
    actuated ball valves
  • Real Locking

    Real Locking

    • The valves with Real Locking Design are locked well even the valves without handle
    • Real Locking ball valves are for 501S/ 501T/ 501F/ 610A/ 620A/ 513T/ 513F
    real locking ball valve-web
  • Spring Return Handle

    Valve with Dead-Man Handle

    • The valves with Spring Return Handle will return when user release the handle.
    • Users will never forget to close the valve as the valves are with Dead-Man Handle
    • For size 1/4” to 4” (100 Nm)
    • All with locking function
    • Torque adjusted design
    • Zipson Patented!
    ball valves with spring handle (dead-man handle)1
  • Handle with LSB

    Manual ball valves with limit switch box

    • Very nice and heavy duty design
    • SS 304 bracket
    manual valve with limit switch box
